Project:
QGIS
Version:
3.24
Feature: Improved rendering of line pattern fills
When exporting to a vector format (e.g. PDF or SVG) or when a line subsymbol has dynamic (data defined) properties, we now automatically switch to a line-by-line based approach to render the fill. (Previously, a tiled pattern approach was always used, which often resulted in undesirable artefacts and visible seams in the pattern).
Some of the many benefits of this change include:
- Smaller PDF/SVG output file sizes -- the line pattern fills aren't stored as raster images in the output so the overall file size will often be much smaller
- PDF/SVG exported files are easier to modify in external applications (such as Inkscape or Adobe Illustrator) for post production, as each individual line in the pattern can be modified.
- Better quality PDF/SVG outputs, since the fill isn't DPI dependent and looks pixel perfect regardless of how far in you zoom
- No visible artifacts at certain angles, distances or with certain line symbol styles

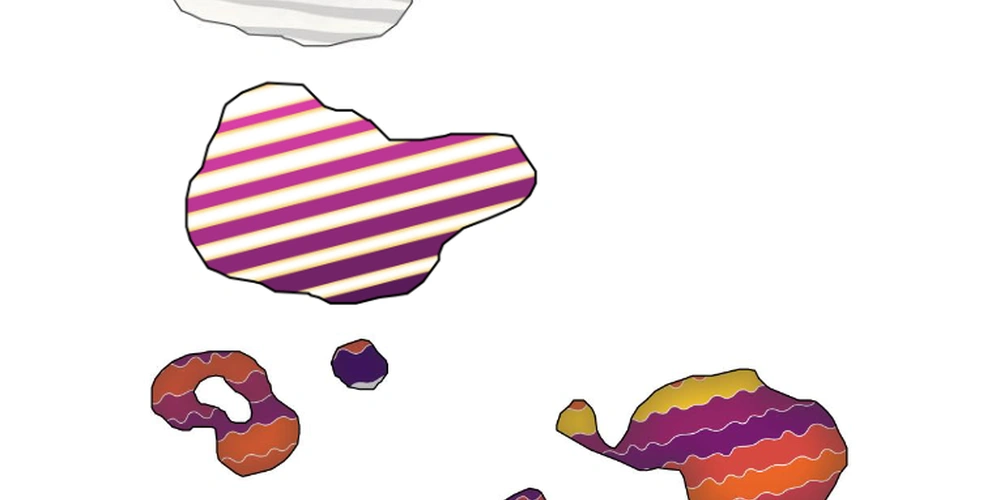

And even more excitingly, it opens the door for a range of new symbol styles, for example:
- line patterns where the individual lines change color/width/dash/ etc.
- line patterns with marker line symbols on center point/etc
- geometry generator effects per line, e.g. wavy line patterns, hand drawn line styles, etc
