Project: QGIS

Version: 2.6.0

Feature: Composer map grid improvements

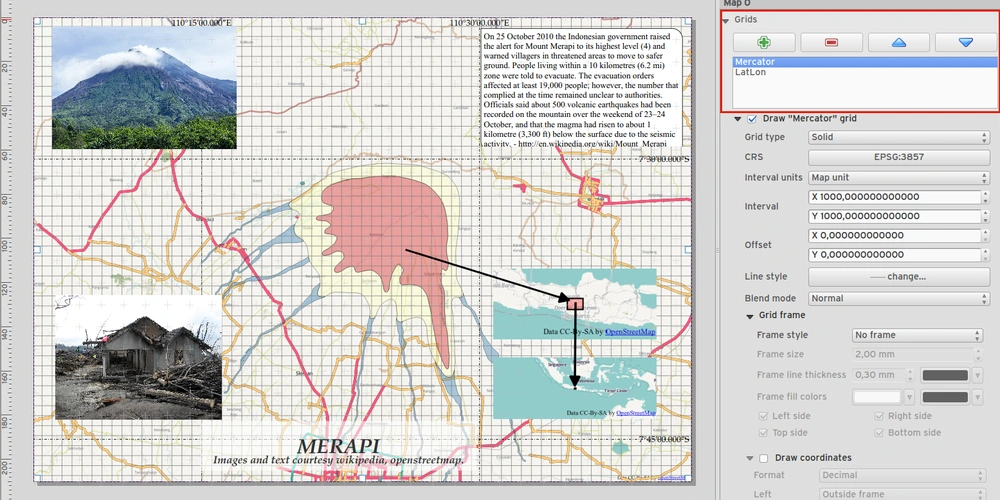

  • You can now have multiple grids with different properties.
  • You can mix reprojected grids and Lat/Long grids.
  • You can use standard QGIS symbology grid lines etc.
  • There is a new frame/annotations only grid style. Selecting this style causes only the frame and annotations to be drawn, with no grid lines or other markings over the map.
  • There are now options for controlling which side of a map item the frame is drawn on.
  • There are new tick styles for frames, with inner ticks, outer ticks and both inner and outer tick options.
  • We have made improvements to grid annotations, including many new formats for annotations.
  • Grid annotations now use the typographically correct prime and double prime symbols for grid annotations.
